Diesel Generator

Cabletug provide two type of diesel generator,

Generator is also vital important equipement for cable installation projects.Most projects are very far from the city, so there is no power supply for cable conveyor or cable pulling machine.

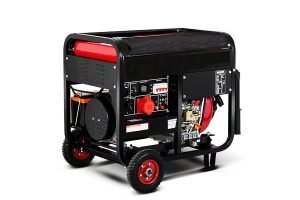

Technical Parameters of Diesel Generators – Open Frame Type

Voltage (V)：220/230, 380/400, 220/380 Frequency (Hz)：50Hz/60Hz Number of Phases：Single – phase, Three – phase, Dual – voltage| Rated Power (kW)：10 Maximum Power (kW)：12 Rotational Speed (rpm)：3000/3600 DC Output (V.A)：12, 8.3 Excitation Method：AVR Type Self – Excitation with Brush Fuel Consumption (L/h)：1.8 – 2 Starting Method：Electric Start Fuel Type：0# (Summer), – 10# (Winter) Engine Oil Type：15W – 40, CD or Higher Grade Battery Specification：12V, 36A Other Configurations：Automatic Charging Regulation, ATS (Optional) Matching Power Model：1100F Bore × Stroke (mm)：100×85 Displacement (CC)：667 Overall Dimensions L×W×H (mm)：78×52×65 Weight (KG)：140

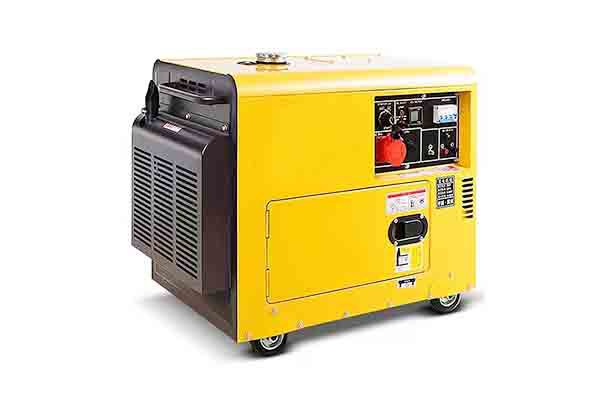

Technical Parameters of Diesel Generators – Low – Noise Type

Voltage (V) 220/230, 380/400, 220/380 Frequency (Hz) 50Hz/60Hz Number of Phases Single – phase, Three – phase, Dual – voltage Rated Power (kW) 10 Maximum Power (kW) 12 Rotational Speed (rpm) 3000/3600 DC Output (V.A) 12, 8.3 Excitation Method AVR Type Self – Excitation with Brush Fuel Consumption (L/h) 1.8 – 2 Starting Method Electric Start Fuel Type 0# (Summer), – 10# (Winter) Engine Oil Type 15W – 40, CD or Higher Grade Battery Specification 12V, 36A Other Configurations Automatic Charging Regulation, ATS (Optional) Matching Power Model 1100F Bore × Stroke (mm) 100×85 Displacement (CC) ：667 Overall Dimensions L×W×H (mm)： 110×63×76 Weight (KG) ：230
