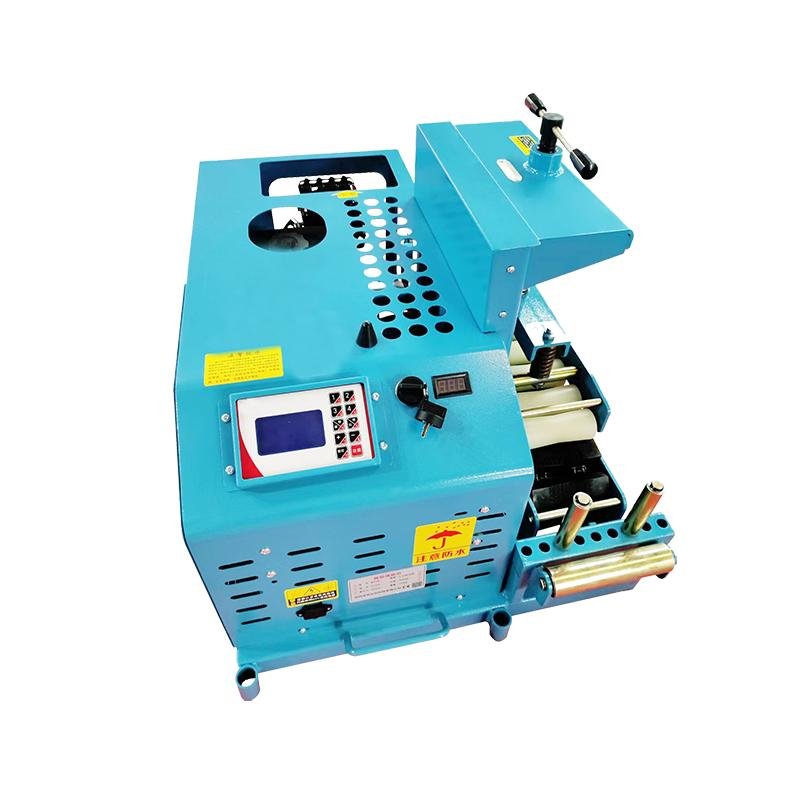

Gasoline Cable Pulling Machine CT-3

The advantage of CT-3 Gasoline Cable pulling & laying machine

• Adopting high quality Gasoline generator
• + Four gears of infinitely variable speed with start and stop, push and pull a key switch
• + The whole system is equipped with a joint control module, which can be used by more than one joint control
• + Panel + remote control, more convenient operation
• + Optional: inverter, to provide power for other tools
• + Optional: transformer, power construction to reduce noise

Parameters

Power System: Gasoline generator

Starting Method: Electric start + hand – pull dual start

Speed Adjustment: 4 levels + stepless speed regulation

Power: 1800W (DC)

Conveying Speed: 0 – 26m/min

Optimal Speed: 10 – 16m/min (2nd and 3rd gears)

Maximum Pulling Force: 4800N

Cable Diameter: 1 – 18cm

Dimensions: 90.5x65x64.5cm

Net Weight: 131kg
